Description
## Applications
A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.
## Compatibility & Interchange Data
Proprietary Astronautics

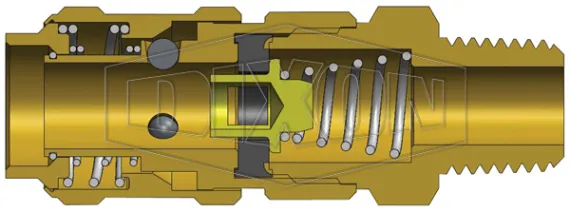

## Construction
- Machined components are manufactured using solid bar stock.
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
- Couplers are constructed of brass with steel valve as standard
- Steel componentry is plated using ROHS Compliant Trivalent Chrome.
## Safety Notes
Pressure rating given at ambient temperature 70°F (21°C).
## Specifications
- Rated pressure for connected Brass Coupler & Brass Plug: 500 PSI (35 bar) Maximum Working and 15,500 PSI (1,070 bar) Burst
- Rated pressure for connected Brass Coupler & Steel Plug: 1,000 PSI (70 bar) Maximum Working and 18,500 PSI (1,275 bar) Burst
## Prop 65 Warning
**WARNING**: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications
| Weight | 0.07 lb |
|---|---|
| Break Quantity | 1 |
| Optional Package/Box Quantity | 1 |
| Material | Brass |
| Maximum OD | 0.64" (16.3 mm) |
| Thread | NPTF |
| Body Size | 1/8" |
| Working Pressure | See Product Details |
| Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Burst Pressure | See Product Details |
| Thread Size | 1/8"-27 |
| Length | 1.75" (44.5 mm) |
| Hex | 1/2" |
| Flow | DELTA P = 15 PSI 8.6 CFM |
| Applications | A series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired. |
| Compatibility & Interchange Data | Proprietary Astronautics |
| Construction | Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Couplers are constructed of brass with steel valve as standard Steel componentry is plated using ROHS Compliant Trivalent Chrome. |
| Safety Notes | Pressure rating given at ambient temperature 70°F (21°C). |
| Specifications | Rated pressure for connected Brass Coupler & Brass Plug: 500 PSI (35 bar) Maximum Working and 15,500 PSI (1,070 bar) Burst Rated pressure for connected Brass Coupler & Steel Plug: 1,000 PSI (70 bar) Maximum Working and 18,500 PSI (1,275 bar) Burst |
| Prop 65 Warning | WARNING : This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
