Description
## Application
Suitable for food and beverage; pharmaceutical; personal care; Pet Products; Dairy; Chemical; Breweries, Wineries & Distilleries
## Available Options

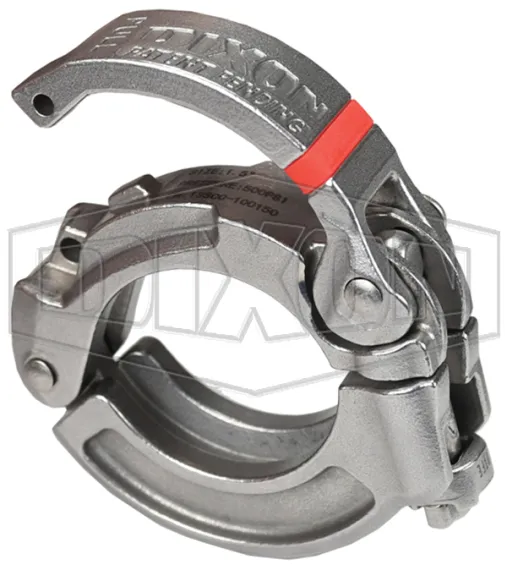

Self-locking pin; Interchangeable food grade silicone colored bands
## Description

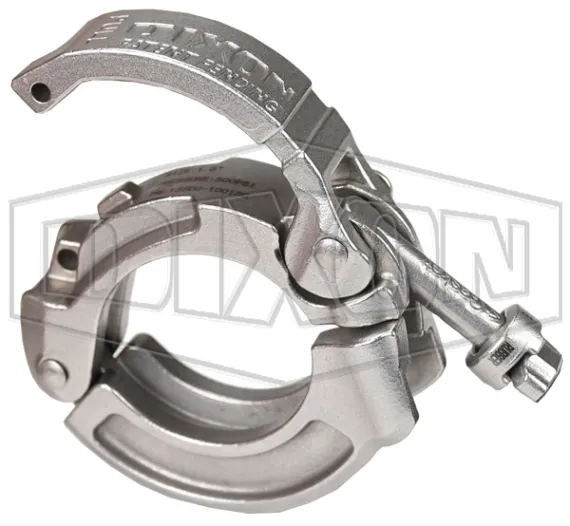

Sanitary Clamp
## Features
- Consistent, controlled compression of gasket with every use
- Adjustable for both rubber and PTFE style gaskets
- ASME BPE capable
- Fast installation, no torquing tools required
- Lockout ready design
- Self-locking lever and color-coding options available
## Note
- Service ratings are based on hydrostatic tests using standard-molded NBR, EPDM, FKM & Silicone material gaskets, with proper installation of ferrules, assembly of joints and absence of shock pressure or water hammer.
- Contact Dixon for service of other type and material gaskets.
- All ratings shown are dependent upon related components within the systems and proper installation of those components.
- For temperatures above 250°F, we cannot provide service ratings.
- Before installation, testing must be done under the specific conditions of your application. Verify specific gasket material temperature ratings.
- This information is only applicable if Dixon clamps, ferrules, and gaskets are used. We cannot guarantee the quality or integrity of other manufacturers components.
## Use
For use on sanitary clamp connections
Specifications
| Tube OD | 1-1/2" |
|---|---|
| Weight | 0.82 lb |
| Break Quantity | 1 |
| Optional Package/Box Quantity | 1 |
| Material | 304 Stainless Steel |
| Pressure Rating | 500 PSI at 70°F (21°C) 300 PSI at 250°F (121°C) |
| Application | Suitable for food and beverage; pharmaceutical; personal care; Pet Products; Dairy; Chemical; Breweries, Wineries & Distilleries |
| Available Options | Self-locking pin; Interchangeable food grade silicone colored bands |
| Description | Sanitary Clamp |
| Features | Consistent, controlled compression of gasket with every use Adjustable for both rubber and PTFE style gaskets ASME BPE capable Fast installation, no torquing tools required Lockout ready design Self-locking lever and color-coding options available |
| Note | Service ratings are based on hydrostatic tests using standard-molded NBR, EPDM, FKM & Silicone material gaskets, with proper installation of ferrules, assembly of joints and absence of shock pressure or water hammer. Contact Dixon for service of other type and material gaskets. All ratings shown are dependent upon related components within the systems and proper installation of those components. For temperatures above 250°F, we cannot provide service ratings. Before installation, testing must be done under the specific conditions of your application. Verify specific gasket material temperature ratings. This information is only applicable if Dixon clamps, ferrules, and gaskets are used. We cannot guarantee the quality or integrity of other manufacturers components. |
| Use | For use on sanitary clamp connections |
