Description
## Applications
Used extensively in oil field and off shore oil rig applications
## Compatibility & Interchange Data
- Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD
- Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC

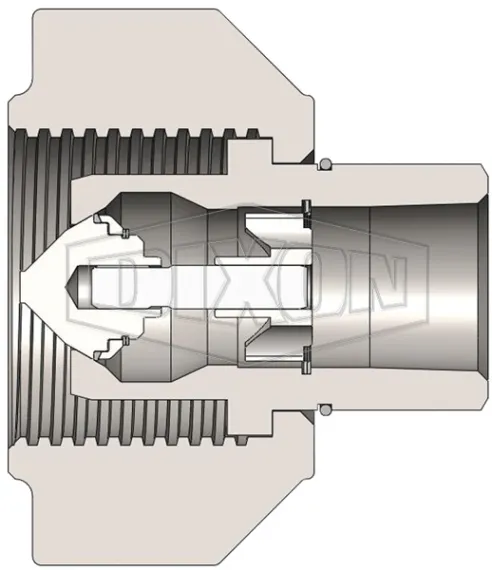

## Construction
- Machined components are manufactured using solid 316 stainless steel bar stock.
- Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
- Steel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistance.
- Rugged high-strength steel wing nut for threaded connect and disconnect operation.
- Nitrile (Nitrile Rubber) seals are standard, providing a temperature range of -40°F to +250°F (-40°C to +121°C)
- PTFE anti-extrusion ring protects main coupling O-Ring from dynamic impulse pressure damage.
- Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection.
## Prop 65 Warning
**WARNING**: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications
| Maximum Operating Pressure | 3000 PSI (200 bar) |
|---|---|
| Weight | 5.55 lb |
| Break Quantity | 1 |
| Optional Package/Box Quantity | 1 |
| Material | 316 Stainless Steel |
| Maximum OD | 4.65" (118.1mm) |
| Thread | Female NPTF |
| Body Size | 1-1/4" |
| Temperature Range | -40°F to +250°F (-40°C to +121°C) |
| Burst Pressure | 15000 PSI (1000 bar) |
| Thread Size | 1-1/4" - 11-1/2 |
| Length | 4.40" (111.8mm) |
| Applications | Used extensively in oil field and off shore oil rig applications |
| Compatibility & Interchange Data | Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC |
| Construction | Machined components are manufactured using solid 316 stainless steel bar stock. Stainless steel retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistance. Rugged high-strength steel wing nut for threaded connect and disconnect operation. Nitrile (Nitrile Rubber) seals are standard, providing a temperature range of -40°F to +250°F (-40°C to +121°C) PTFE anti-extrusion ring protects main coupling O-Ring from dynamic impulse pressure damage. Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection. |
| Prop 65 Warning | WARNING : This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
