10VBF10-B - V-Series Valved Female Coupler

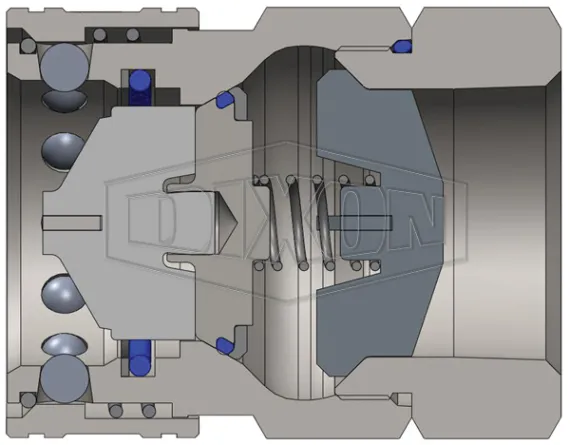

## Available Options - Contact Dixon for all available option adders - Standard seal options include: FKM, EPDM, Steam-EPDM, FDA FKM, Mil-Nitrile, Fuel Nitrile and Silicone - Kalrez® seal options include: 4079, 6375 and 7075 - Valve options include: Unvalved, tubular, steel, brass and 316 stainless steel - Sleeve options include: Sleeve-lock, Flanged and Silicone-flanged - Oxy-clean treatment is available ## Compatibility & Interchange Data - Interchangeable to MIL-C-51234 - Interchangeable with Snap-Tite H/IH Series and Faster TNV ## Construction - Machined components are manufactured using solid bar stock - Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. - Steel componentry is plated using ROHS Compliant Trivalent Chrome. - Steel coupler sleeves are hardened to resist deformation and maximize service life. - Tubular 'TV' valves are constructed from steel bar stock and are designed for optimum performance in pneumatic applications. - Nitrile (Nitrile Rubber) seals are standard - All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage. - Valve O-rings are retained by a unique seal-groove profile and are field replaceable. ## Features General purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications ## Note Minimum burst pressure ratings were established under laboratory conditions using a Static Burst Unit (SBU). For high impulse applications and to meet Det Norske Veritas (DNV) compliance, the burst pressure must be divided by four (4) to ensure a 4:1 safety factor during system operation. ## Prop 65 Warning **WARNING**: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
