Pneumatic Fittings

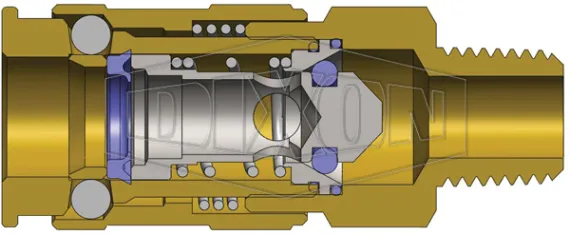

U-Series Universal Pneumatic Male Threaded Coupler

Scraped SKU: u-series-universal-pneumatic-male-threaded-coupler 2026-06-05 09:34:31

Variations (6)

2UM2-B

Length2.44" ( 62.0 mm )
Maximum OD0.92" ( 23.4 mm )
Body Size1/4"
ThreadNPT
Thread Size1/4"-18
SealNitrile
MaterialBrass

2UM3-B

Length2.44" ( 62.0 mm )
Maximum OD0.92" ( 23.4 mm )
Body Size1/4"
ThreadNPT
Thread Size3/8"-18
SealNitrile
MaterialBrass

2UBM2-B

Length2.44" ( 62.0 mm )
Maximum OD0.92" ( 23.4 mm )
Body Size1/4"
ThreadBSPP
Thread Size1/4"-19
SealNitrile
MaterialBrass

2UBM3-B

Length2.44" ( 62.0 mm )
Maximum OD0.92" ( 23.4 mm )
Body Size1/4"
ThreadBSPP
Thread Size3/8"-19
SealNitrile
MaterialBrass

3UM3-B

Length2.64" ( 67.0 mm )
Maximum OD1.09" ( 27.7 mm )
Body Size3/8"
ThreadNPT
Thread Size3/8"-18
SealNitrile
MaterialBrass

3UBM3-B

Length2.64" ( 67.0 mm )
Maximum OD1.09" ( 27.7 mm )
Body Size3/8"
ThreadBSPP
Thread Size3/8"-19
SealNitrile
MaterialBrass
