Pneumatic Fittings

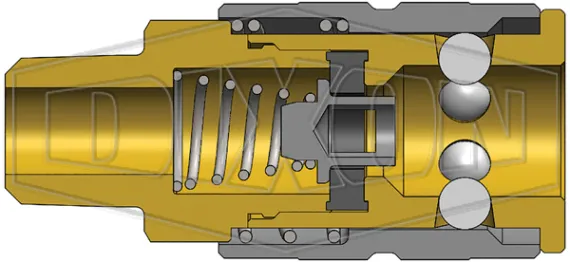

F-Series Pneumatic Manual Male Threaded Coupler

Scraped SKU: f-series-pneumatic-manual-male-threaded-coupler 2026-06-05 09:33:32

Variations (20)

2FM1-B

Length1.97" ( 50.0 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size1/8"-27
Pipe ThreadNPT / NPTF
SealNitrile
MaterialBrass

2FM1-S

Length1.97" ( 50.0 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size1/8"-27
Pipe ThreadNPT / NPTF
SealNitrile
Material303 Stainless Steel

2FM2

Length2.04" ( 51.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size1/4"-18
Pipe ThreadNPT / NPTF
SealNitrile
MaterialSteel

2FM2-B

Length2.04" ( 51.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size1/4"-18
Pipe ThreadNPT / NPTF
SealNitrile
MaterialBrass

2FM2-S

Length2.04" ( 51.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size1/4"-18
Pipe ThreadNPT / NPTF
SealNitrile
Material303 Stainless Steel

2FBM2-B

Length2.04" ( 51.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale BSPT
Thread Size1/4"-19
Pipe ThreadBSPP / BSPT
SealNitrile
MaterialBrass

2FM3-B

Length2.08" ( 52.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size3/8"-18
Pipe ThreadNPT / NPTF
SealNitrile
MaterialBrass

2FM3-S

Length2.08" ( 52.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size3/8"-18
Pipe ThreadNPT / NPTF
SealNitrile
Material303 Stainless Steel

2FBM3-B

Length2.08" ( 52.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale BSPT
Thread Size3/8"-19
Pipe ThreadBSPP / BSPT
SealNitrile
MaterialBrass

3FM2

Length2.45" ( 62.2 mm )
Maximum OD1.06" ( 26.9 mm )
Body Size3/8"
ThreadMale NPTF
Thread Size1/4"-18
Pipe ThreadNPT / NPTF
SealNitrile
MaterialSteel

3FM3

Length2.46" ( 62.5 mm )
Maximum OD1.06" ( 26.9 mm )
Body Size3/8"
ThreadMale NPTF
Thread Size3/8"-18
Pipe ThreadNPT / NPTF
SealNitrile
MaterialSteel

3FM3-S

Length2.46" ( 62.5 mm )
Maximum OD1.06" ( 26.9 mm )
Body Size3/8"
ThreadMale NPTF
Thread Size3/8"-18
Pipe ThreadNPT / NPTF
SealNitrile
Material303 Stainless Steel

3FBM3

Length2.46" ( 62.5 mm )
Maximum OD1.06" ( 26.9 mm )
Body Size3/8"
ThreadMale BSPT
Thread Size3/8"-19
Pipe ThreadBSPP / BSPT
SealNitrile
MaterialSteel

3FM4

Length2.55" ( 64.8 mm )
Maximum OD1.06" ( 26.9 mm )
Body Size3/8"
ThreadMale NPTF
Thread Size1/2"-14
Pipe ThreadNPT / NPTF
SealNitrile
MaterialSteel

4FM3

Length2.97" ( 75.4 mm )
Maximum OD1.19" ( 30.2 mm )
Body Size1/2"
ThreadMale NPTF
Thread Size3/8"-18
Pipe ThreadNPT / NPTF
SealNitrile
MaterialSteel

4FM4

Length3.07" ( 78.0 mm )
Maximum OD1.19" ( 30.2 mm )
Body Size1/2"
ThreadMale NPTF
Thread Size1/2"-14
Pipe ThreadNPT / NPTF
SealNitrile
MaterialSteel

4FM4-S

Length3.07" ( 78.0 mm )
Maximum OD1.19" ( 30.2 mm )
Body Size1/2"
ThreadMale NPTF
Thread Size1/2"-14
Pipe ThreadNPT / NPTF
SealNitrile
Material303 Stainless Steel

4FBM4

Length3.07" ( 78.0 mm )
Maximum OD1.19" ( 30.2 mm )
Body Size1/2"
ThreadMale BSPT
Thread Size1/2"-14
Pipe ThreadBSPP / BSPT
SealNitrile
MaterialSteel

4FM6

Length3.12" ( 79.2 mm )
Maximum OD1.19" ( 30.2 mm )
Body Size1/2"
ThreadMale NPTF
Thread Size3/4"-14
Pipe ThreadNPT / NPTF
SealNitrile
MaterialSteel

2FM2-B-BS

Length2.04" ( 51.8 mm )
Maximum OD0.88" ( 22.4 mm )
Body Size1/4"
ThreadMale NPTF
Thread Size1/4"-18
Pipe ThreadBSPP / BSPT
SealNitrile
MaterialBrass
